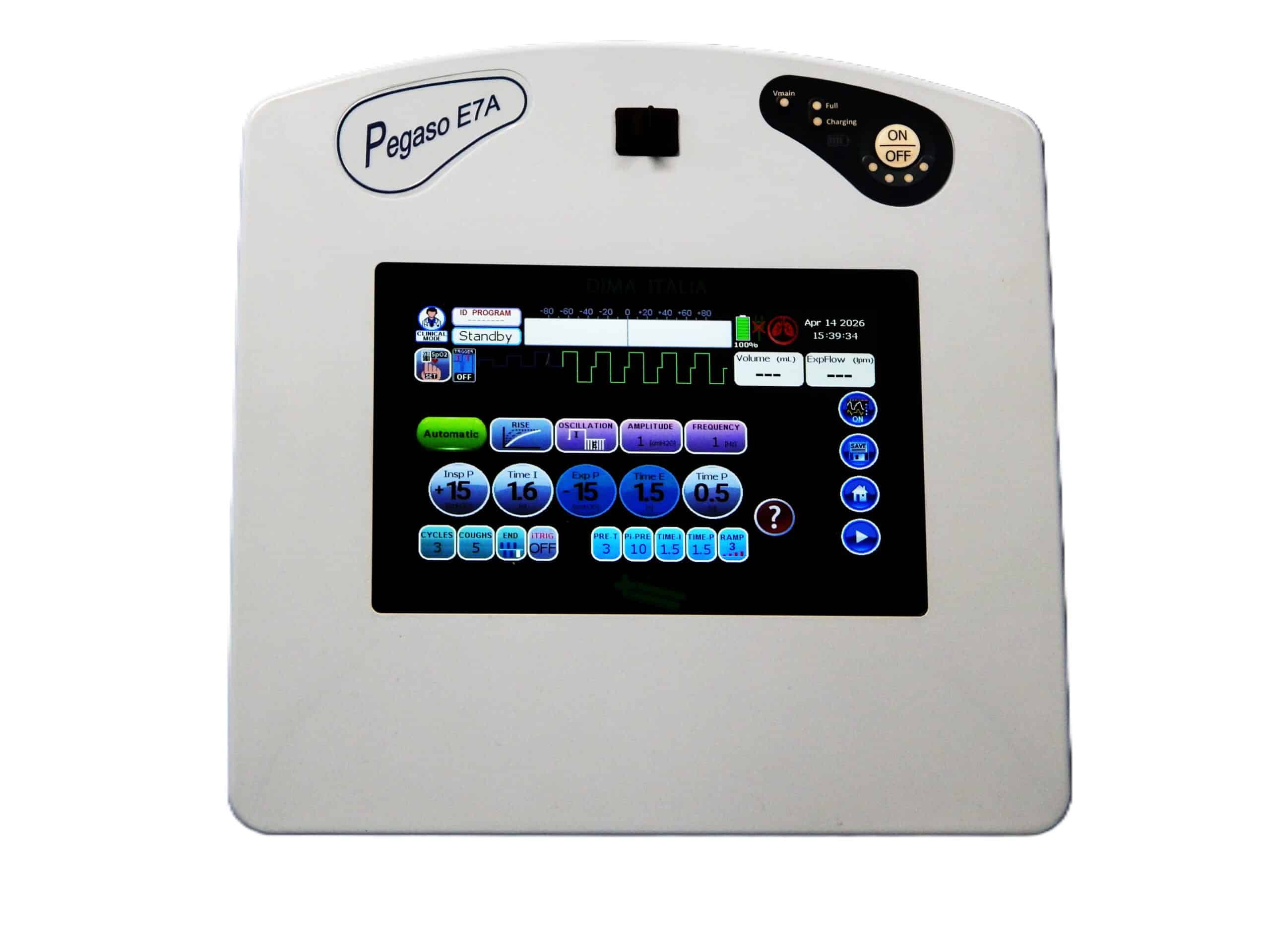

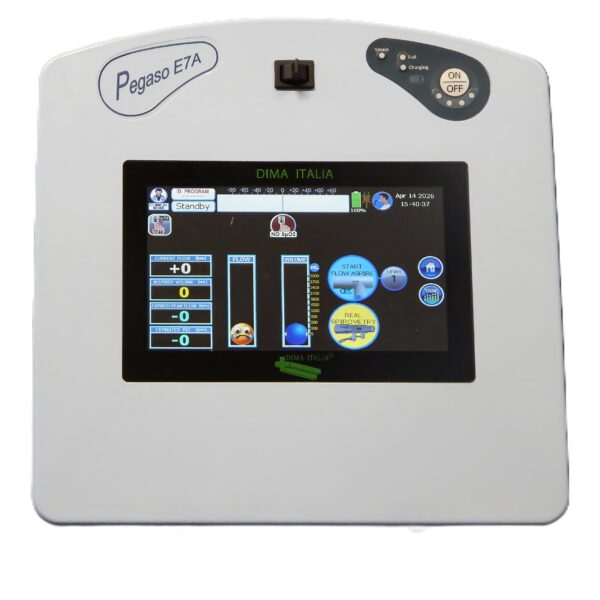

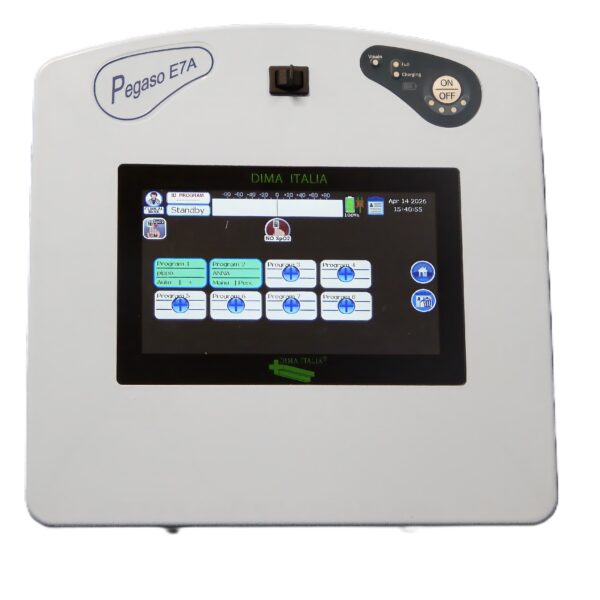

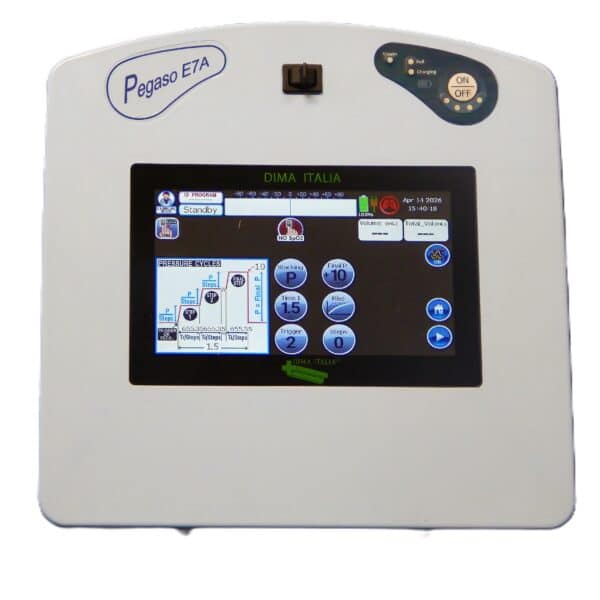

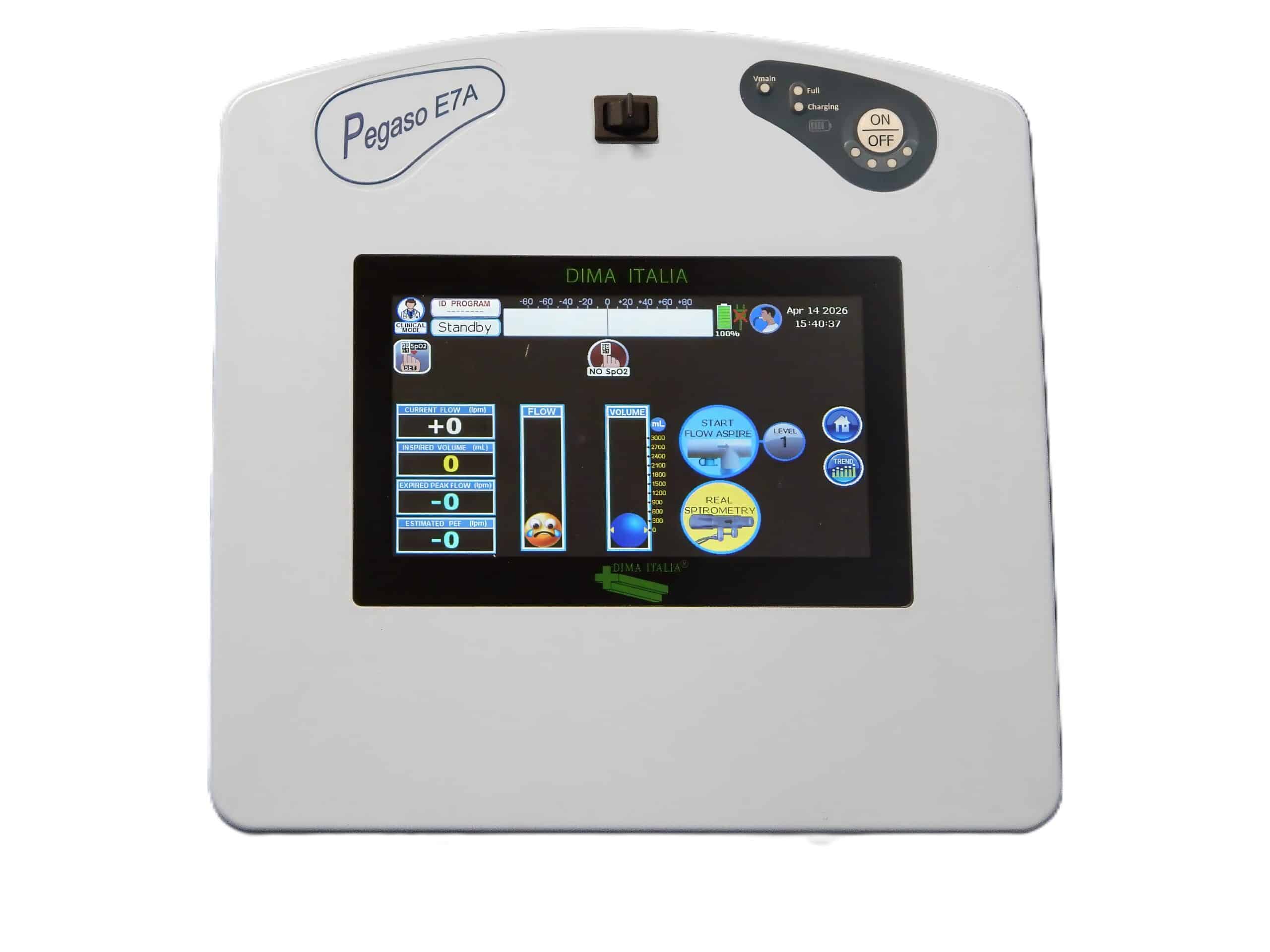

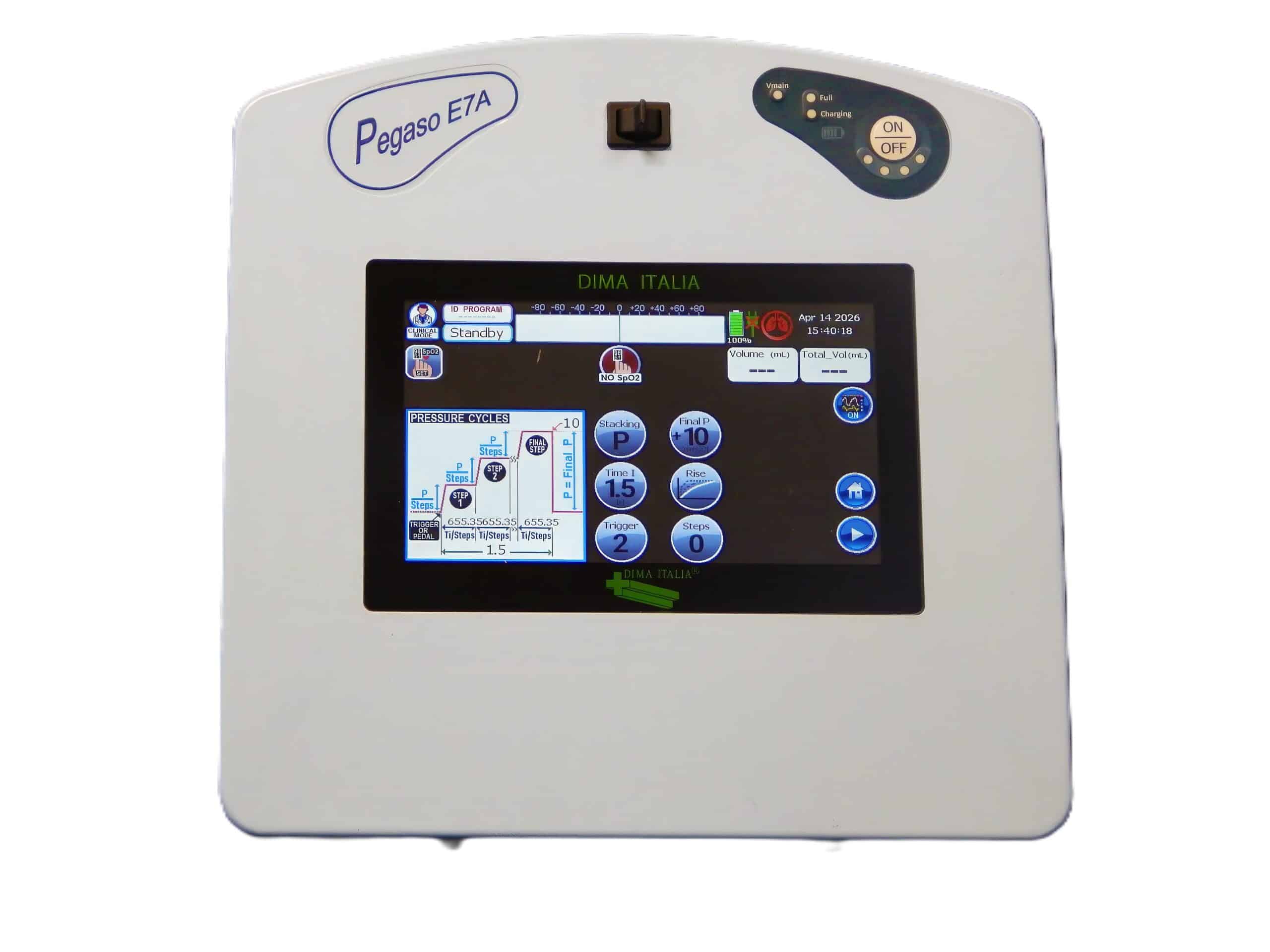

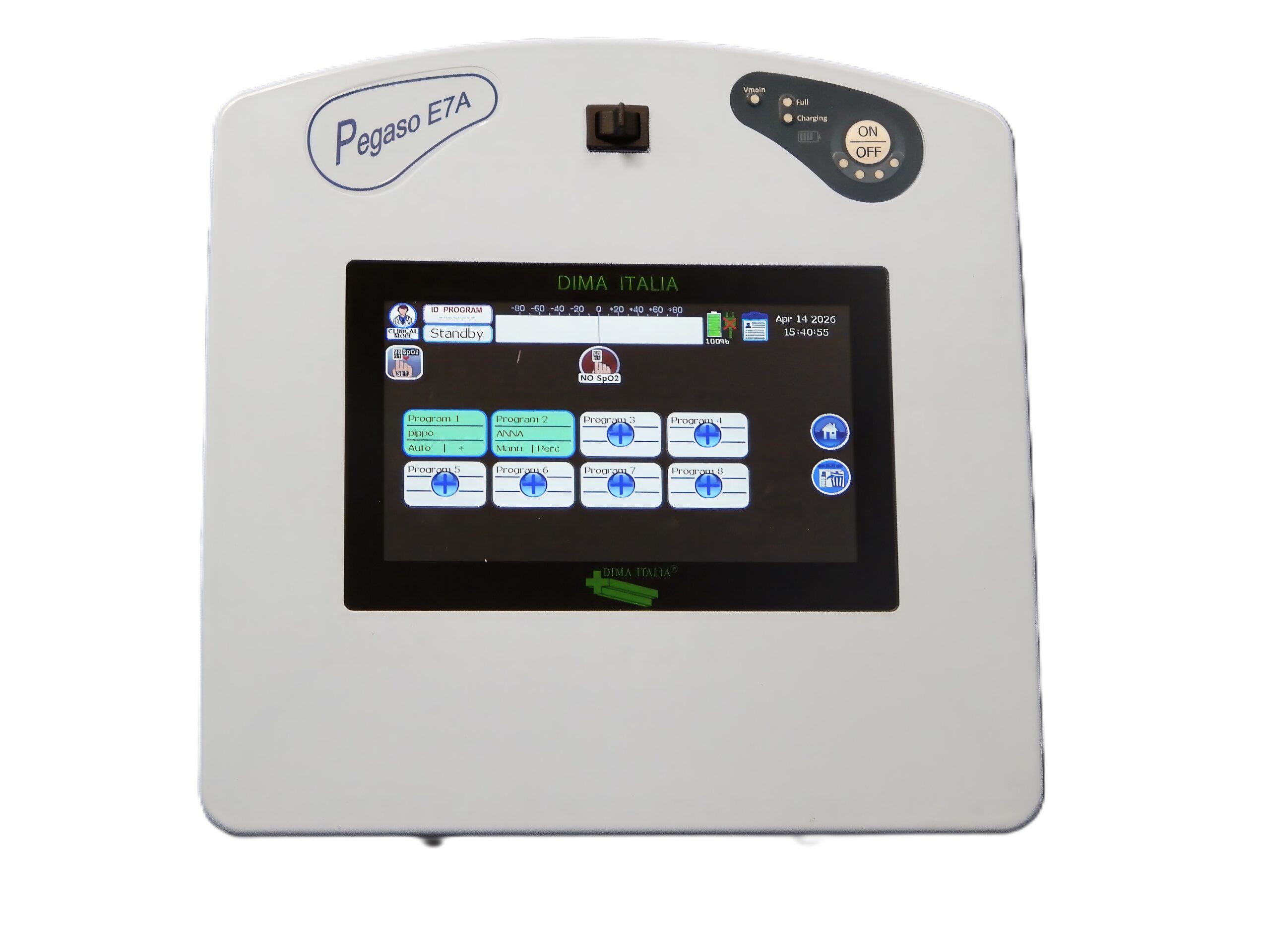

Pegaso E7A – Advanced Airway Clearance & Spirometry Device
Manufacturer: Dima Italia
The Pegaso E7A builds is the new model of the Pegaso range, with the addition of integrated spirometry, enabling respiratory function assessment alongside therapy delivery in a single device. Featuring 8 modes including Flow Aspire, IPV, five Cough Assist/MI-E modes (Automatic, Manual, Auto Adaptive, Air Stacking, and Trainer), and HFCWO belt compatibility. Designed for hospital and home use.
The Pegaso E7A is available for purchase, hire, or as part of an NDIS plan.
Building on the proven performance of the Pegaso platform, the Pegaso E7A is the next step in respiratory care — combining advanced airway clearance therapies with integrated spirometry in a single device.
Designed for both hospital and home use, the Pegaso E7A delivers the full functionality of the E7C, including IPV, MI-E (Cough Assist), Flow Aspire, and HFCWO compatibility, while adding the ability to perform spirometry assessments to support patient monitoring and clinical decision-making.
This dual capability allows clinicians to both deliver therapy and assess respiratory function within the same workflow, improving efficiency and continuity of care.
The Pegaso E7A is available for purchase, hire, or as part of an NDIS plan.
The Pegaso E7A features advanced airway clearance therapy modes, integrated spirometry functionality, and a large colour touchscreen display for ease of use.
8 Different Modes
Flow Aspire Mode (using Flow Aspire Adaptor)
- Passive expiratory flow acceleration for secretion clearance
- Mobilises mucus during natural breathing (no patient effort required)
- Protects collapsible airways by avoiding negative pressure
- Suitable for patients with limited respiratory effort
IPV Mode (Intrapulmonary Percussive Ventilation)
- Pressures up to 70cmH2O
- Frequency 50–600 BPM
- IE Ratio 1:5 – 5:1 (0.1 increments)
- In Percussor mode, a humidifier can be attached and used with a mouthpiece, mask, ETT, or tracheostomy tube
Cough Assist / MI-E Modes (5 modes: Automatic, Manual, Auto Adaptive, Air Stacking and Trainer)
- Pressure up to 70cmH2O with powerful flows for effective cough assist therapy
- Three different rise times
- Trigger sensitivity regulation (9 levels) for auto-adaptive modes
- Programmable air stacking up to 7 steps
- Display of inspired volumes and peak inspiratory flow
- Oscillatory function during insufflation and exsufflation (adjustable frequency and pressure)
- Live and recorded waveforms to support Assisted Cough titration
- Mode or setting lock feature in patient or carer menus
Spirometry (E7A only)
- Volume flow curve
- Maximum flow: 8 L/s
- Maximum volume: 6 litres
- Measured values: FEV1, FVC, FEV1/FVC, PEF, PIF, PEF/PIF, PCF
HFCWO Belt (High Frequency Chest Wall Oscillation)
- Hands-free secretion clearance using the Pegaso E7A
- Delivers effective oscillation at 15 Hz (meets ≥13 Hz therapy threshold)
- Helps loosen and mobilise secretions while patients breathe normally
- Soft corset-style design for comfort and ease of use
- Suitable across a range of care settings and patient abilities
Additional Features
- Optional SpO₂ monitoring directly from the display screen to support therapy monitoring
- Storage of up to 200 therapies
- USB, USB-C and SD card for downloads and communication
- Weight: 3.2 kg
- Internal battery with approximately 3–4 hours capacity
- Optional foot pedal
- TGA registered
- 2-year warranty
Pegaso E7A device assists with airway clearance and mucus removal in a range of patients with respiratory insufficiency.
Conditions that may benefit from IPV and/or Assisted Cough include:
- Muscular Dystrophy (DMD, MD)
- Motor Neurons Disease (MND)
- Cerebral Palsy
- Spinal Muscular Atrophy (SMA)
- Spinal Cord Injury
- Traumatic Brain Injury (TBI)
- Polio
- Amyotrophic Lateral Sclerosis(ALS)
- Myasthenia Gravis.
